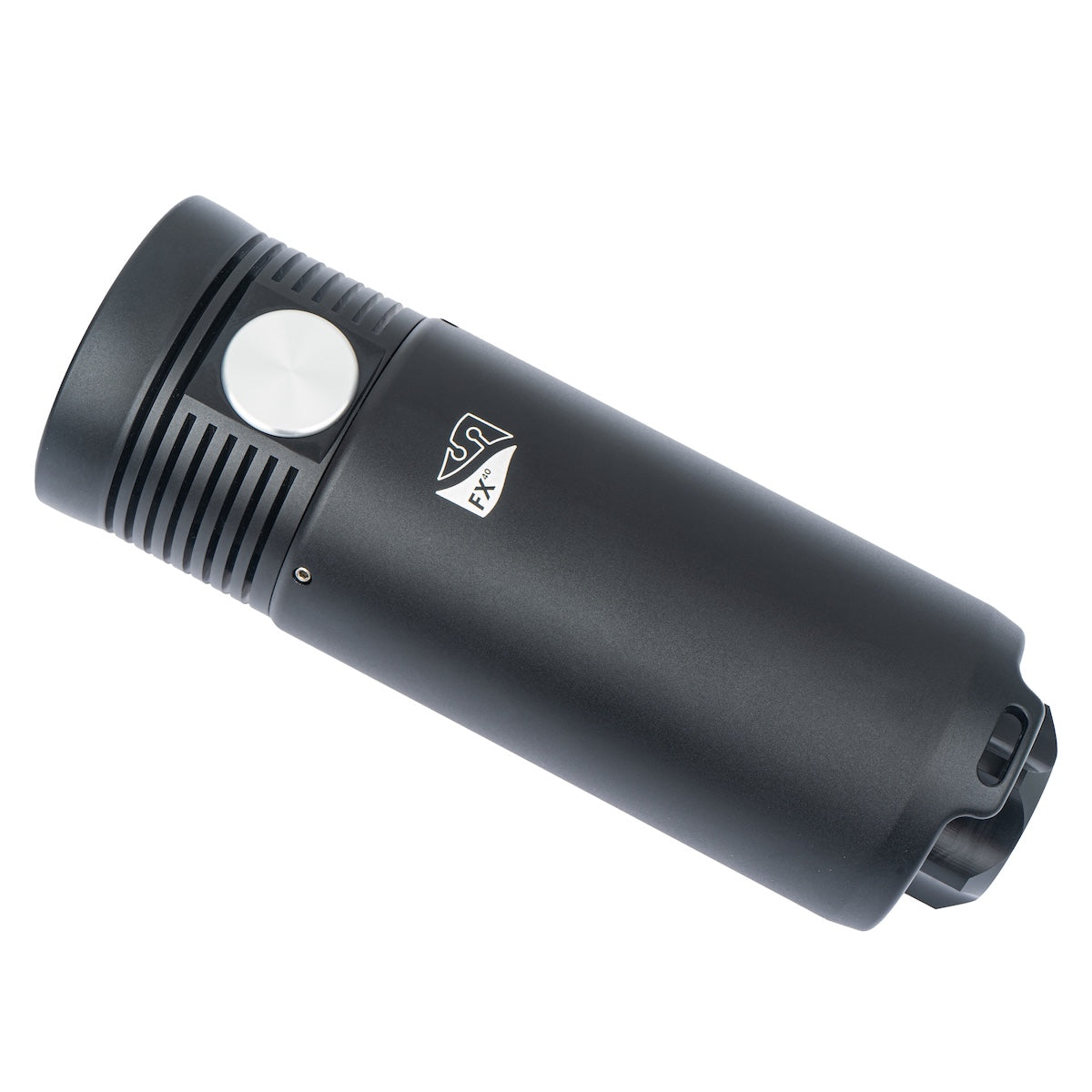

The Dive Rite FX40 Handheld Primary Light

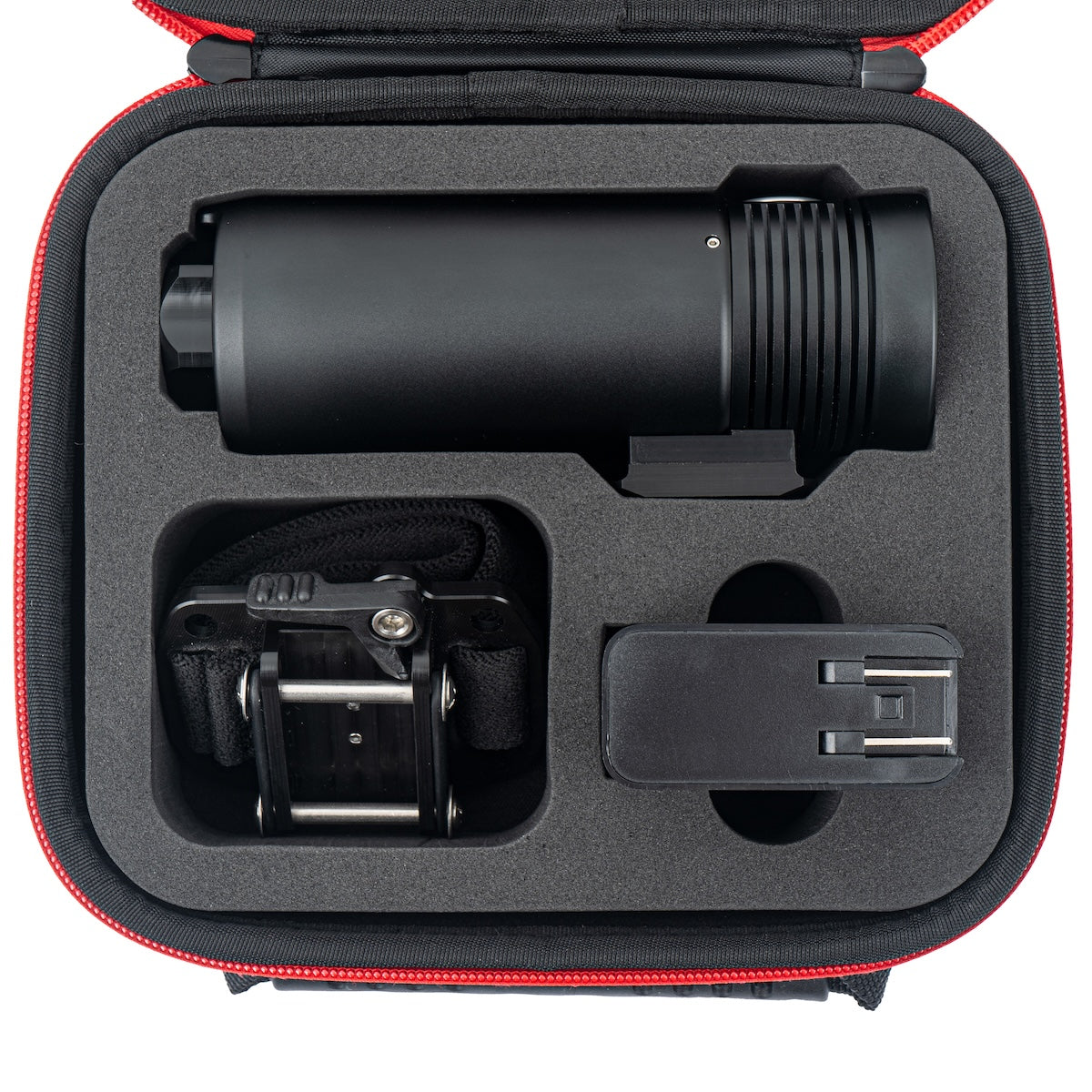

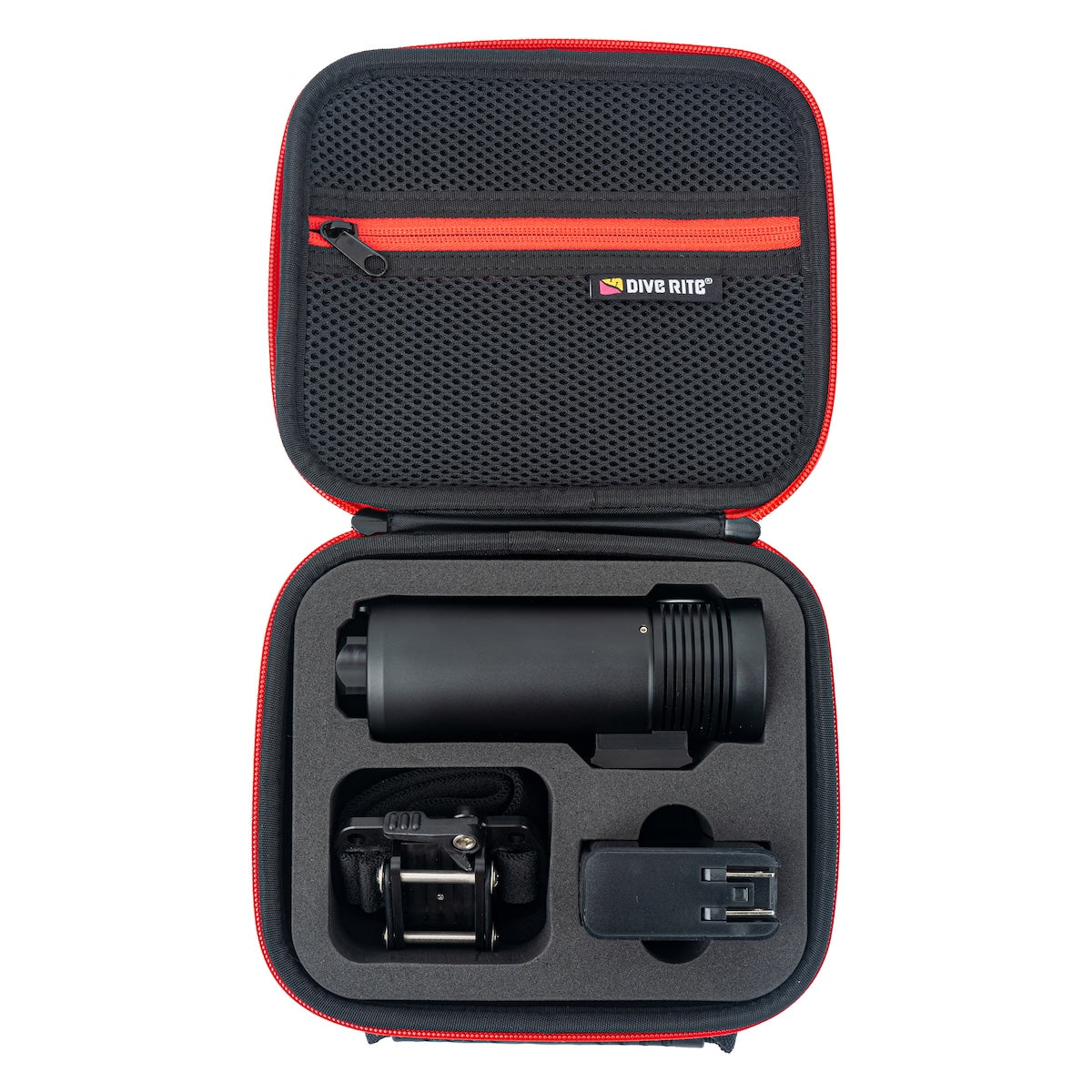

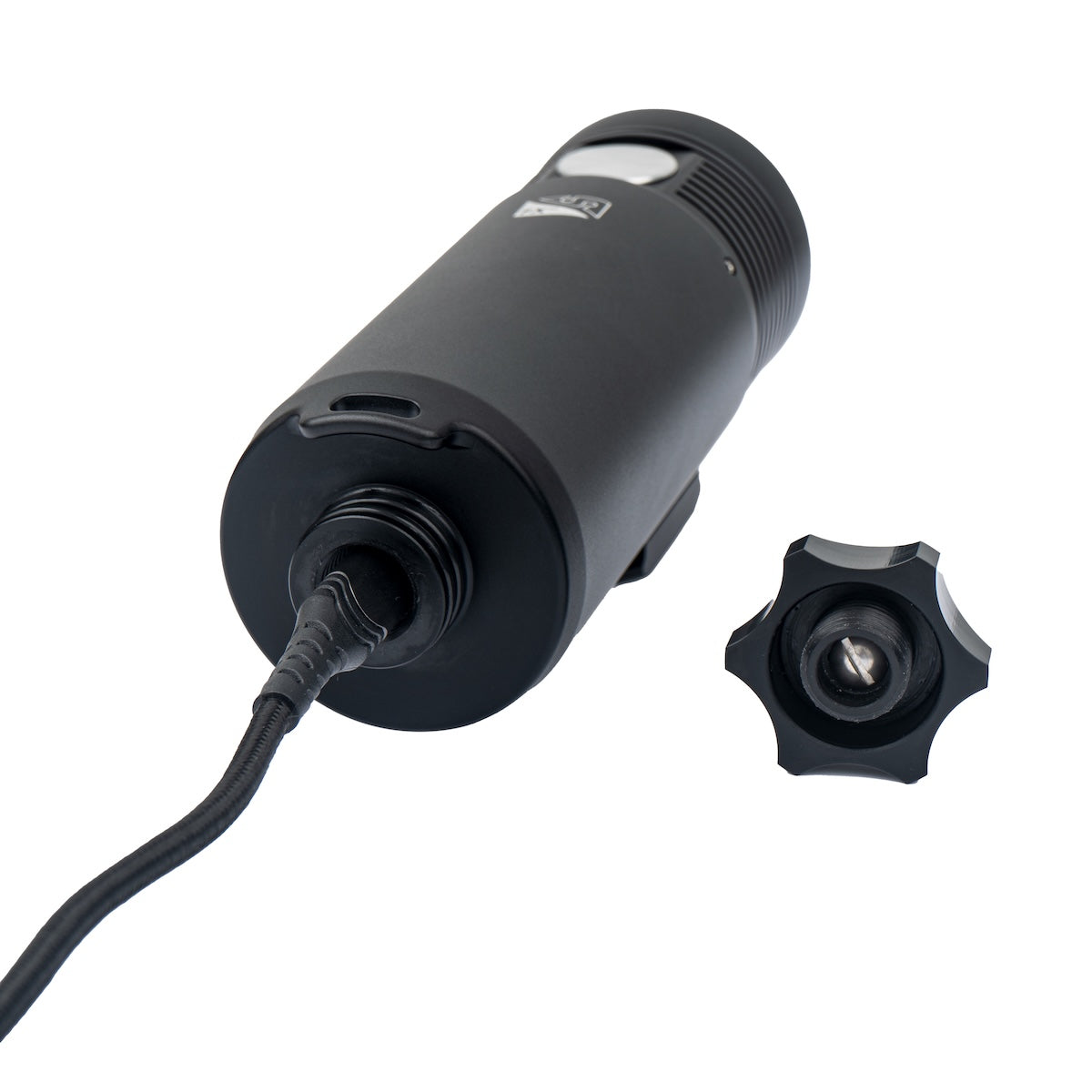

Delivers a powerful 2400-lumen beam in a compact, meticulously engineered package that’s ready to take on your most challenging dives. Its tightly focused 4-degree beam cuts through darkness and murky conditions with pinpoint precision and allows for clear communication with your buddy in demanding technical environments. The streamlined piezo button ensures smooth operation with no moving parts. Built from CNC-machined aluminum with a hard type III anodized finish, the FX40 boasts a depth rating of 500 feet. Charging couldn’t be more convenient—just unscrew the back cap and plug in any compatible USB-C PD charging cable (no batteries ever need to come out). Comes with batteries, a soft elastic handmount plate with QRM mounting system, USB-C charging cable and 65 Watt charging block, and padded carrying case. The FX40 will be ready to go for your next underwater adventure. Made in the USA.
TECH SPECS
| Weight (Light) | 1.26 lbs (0.57 kg) |

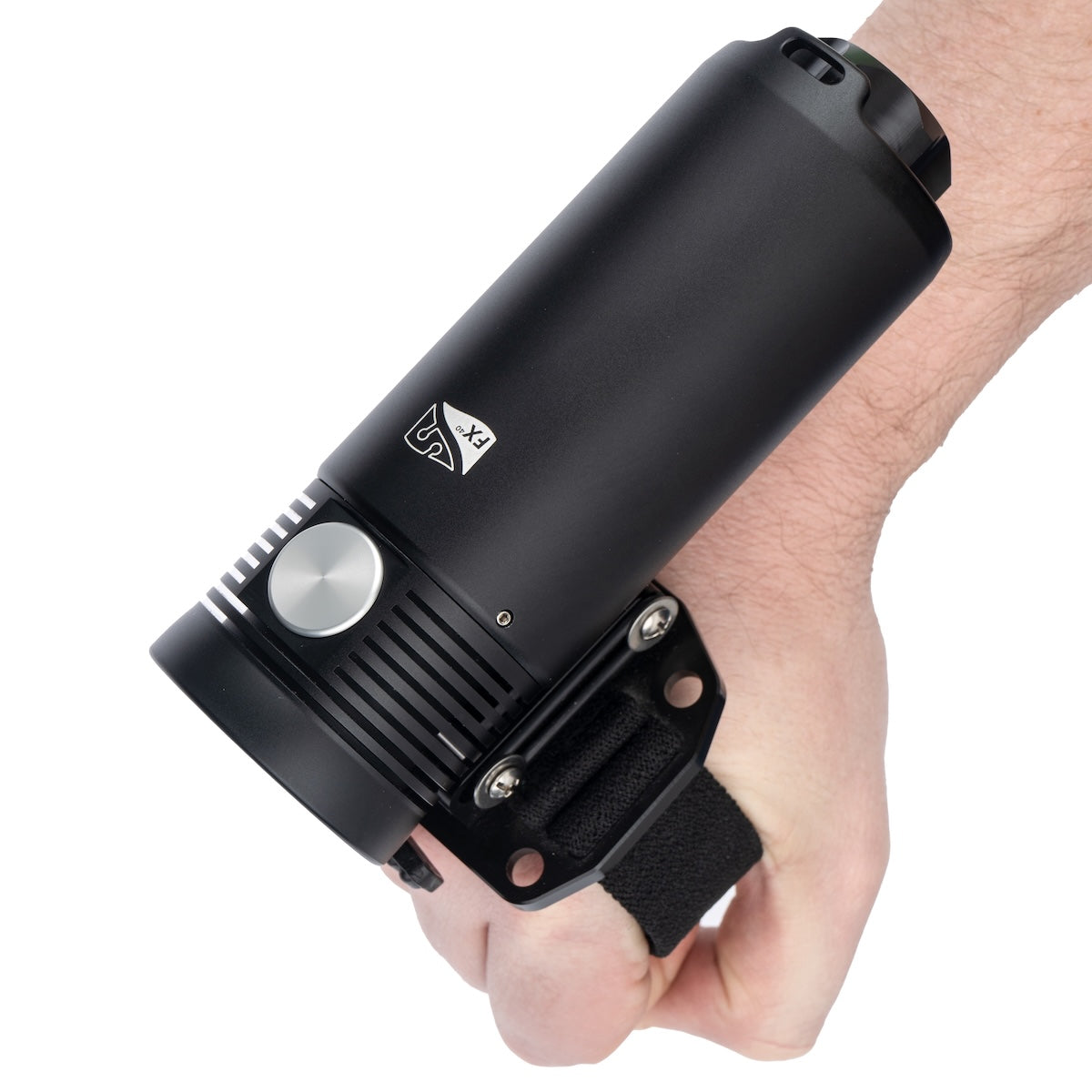

| Weight (Light with Handmount) | 1.4 lbs (0.64 kg) |
| Weight (Complete Package) | 2.3 lbs (1.04 kg) |

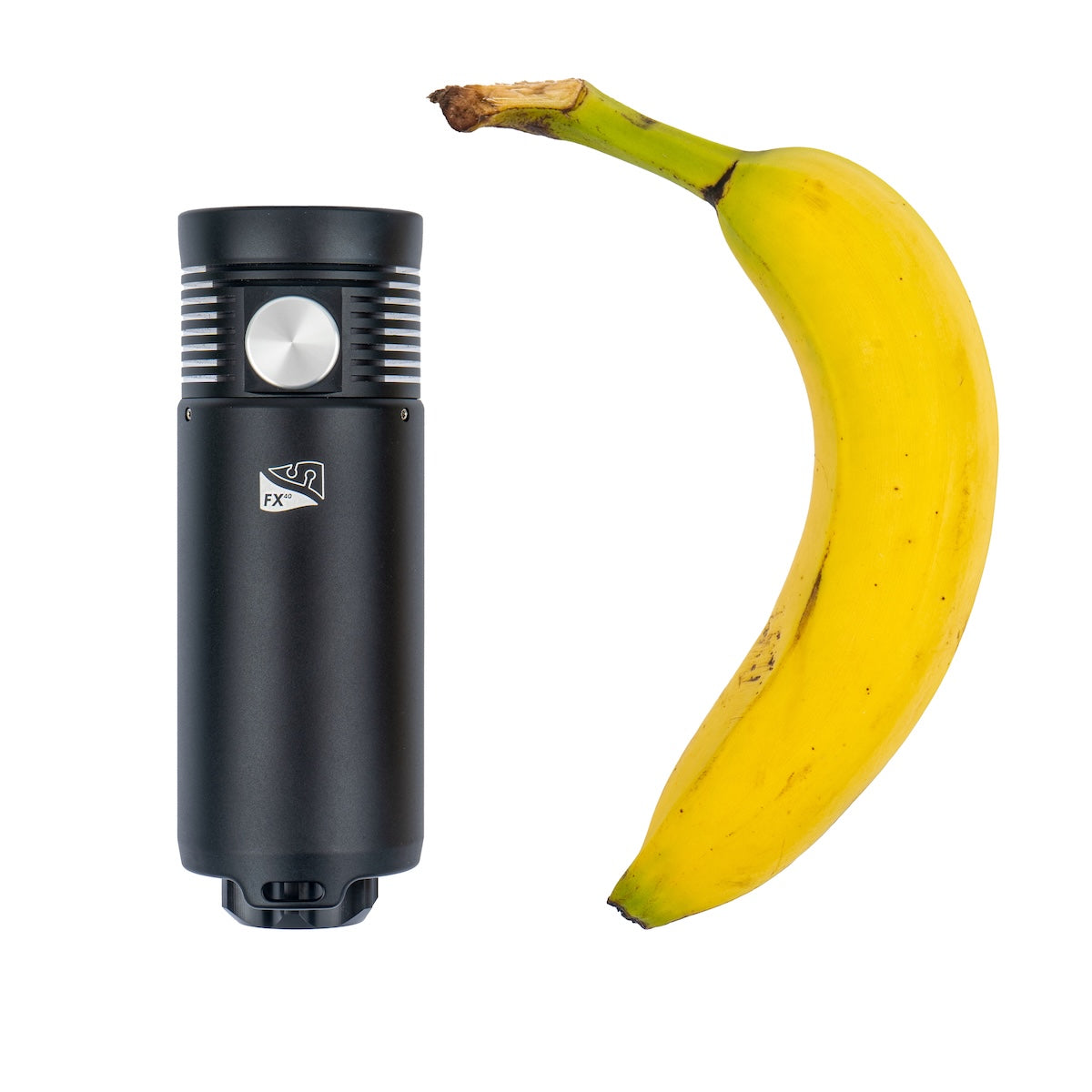

| Dimensions (Light) | 5.8 x 2 in (14.7 x 5.1 cm) |
| Dimensions (Complete Package) | 7.9 x 7.1 x 3.3 in (20.1 x 18 x 8.4 cm) |
| Buoyancy (Light with Handmount) | 11 oz (312 g) negative in fresh water |
| Material | CNC machined aluminum body with hard type III black anodizing |
| Depth Rating | 500 ft (152 m) |
| Max Output | 2400 lumens |
| Beam Angle | 4° |
| LED | Luminus SFT-40 |
| Reflector | Fixed focus, smooth |
| Activation | Simple, head-mounted piezo button |
| Light Color Temperature | 6500 K |
| Batteries (3) | 6000 mAh 21700 3.6 V li-ion (included, replaceable) |
| Battery Level Indicator | LED |
| Charge Type | USB-C (included) |

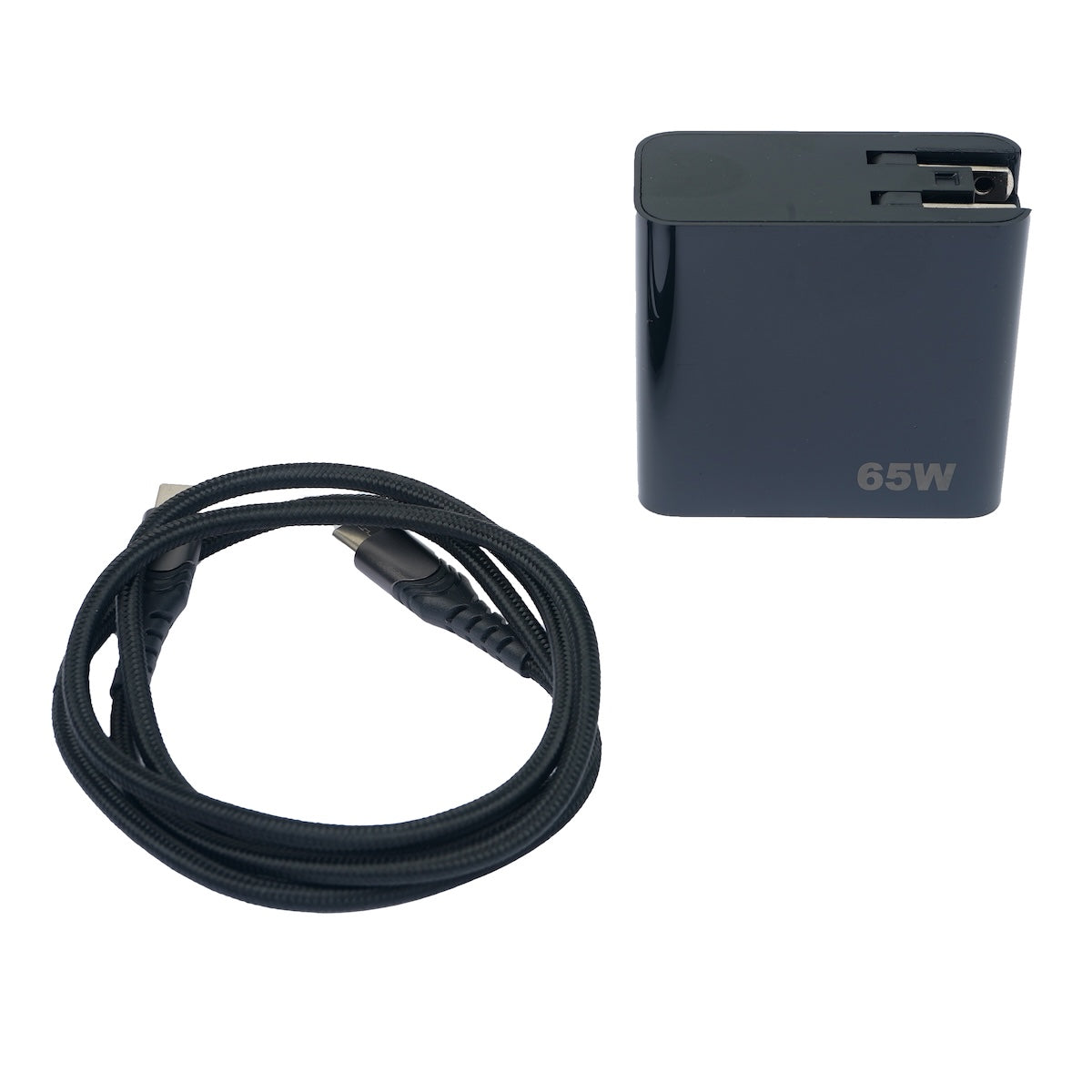

| Charge Block Type | 65 Watt (included) |
| Charge Time | ~5.25 hrs (with included charger) |

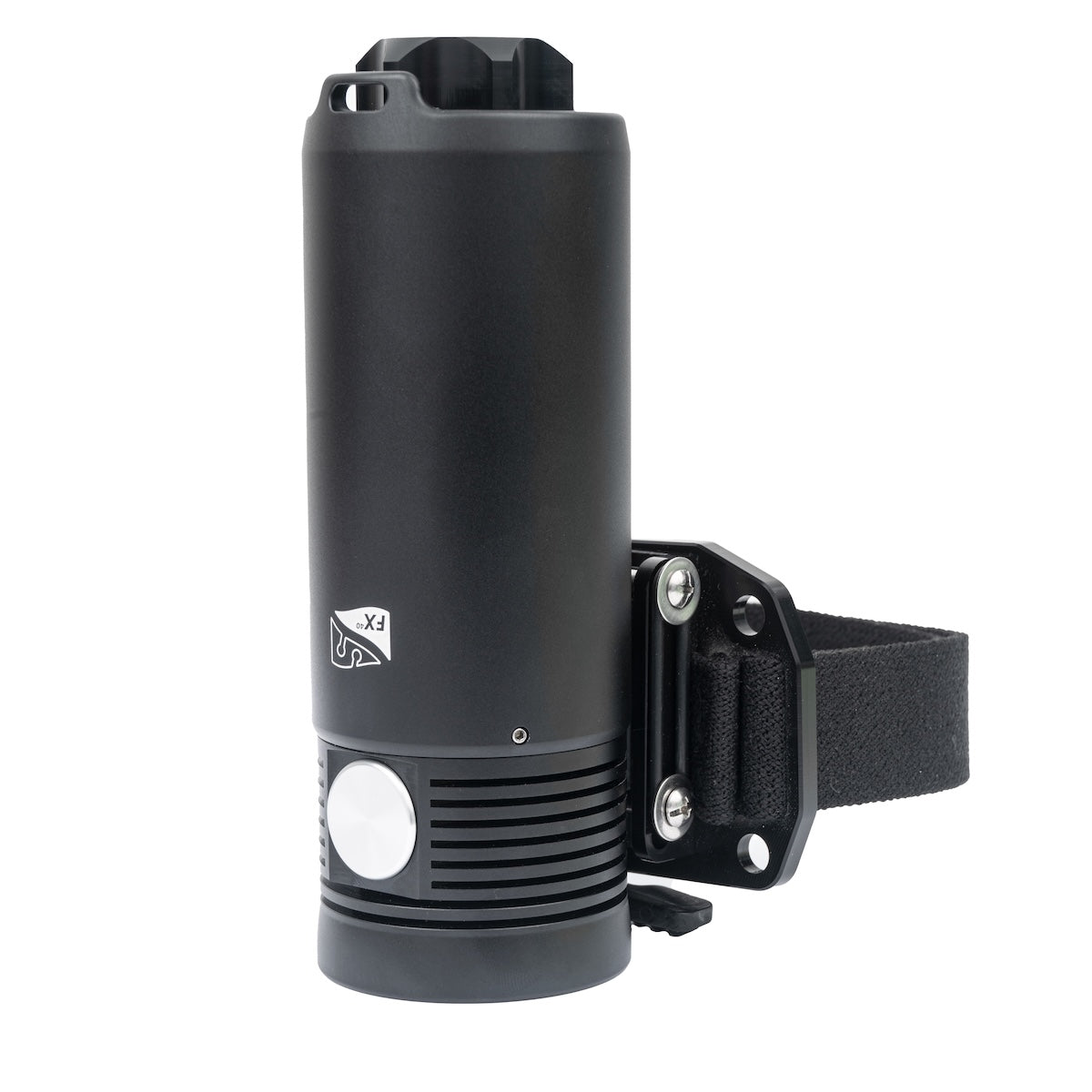

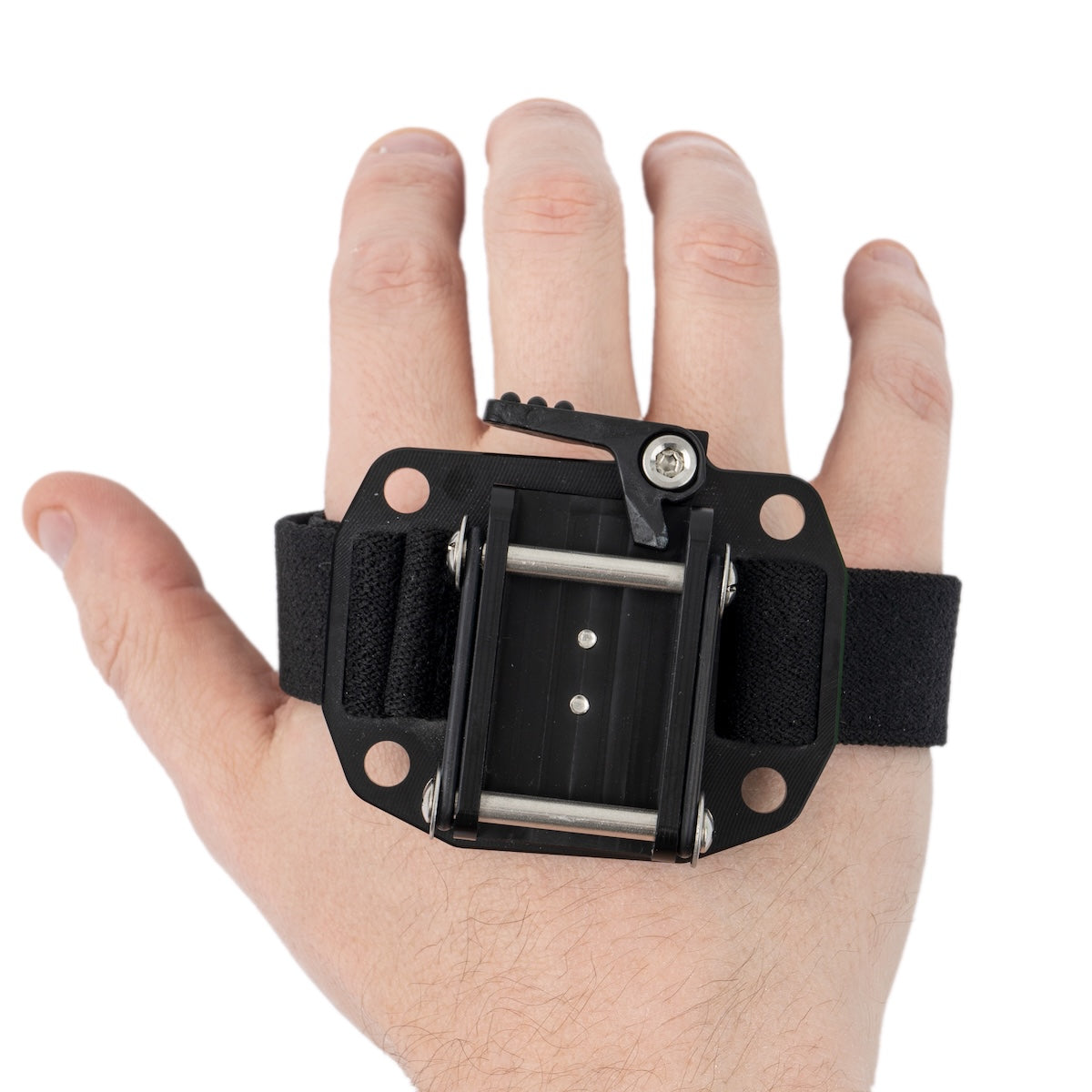

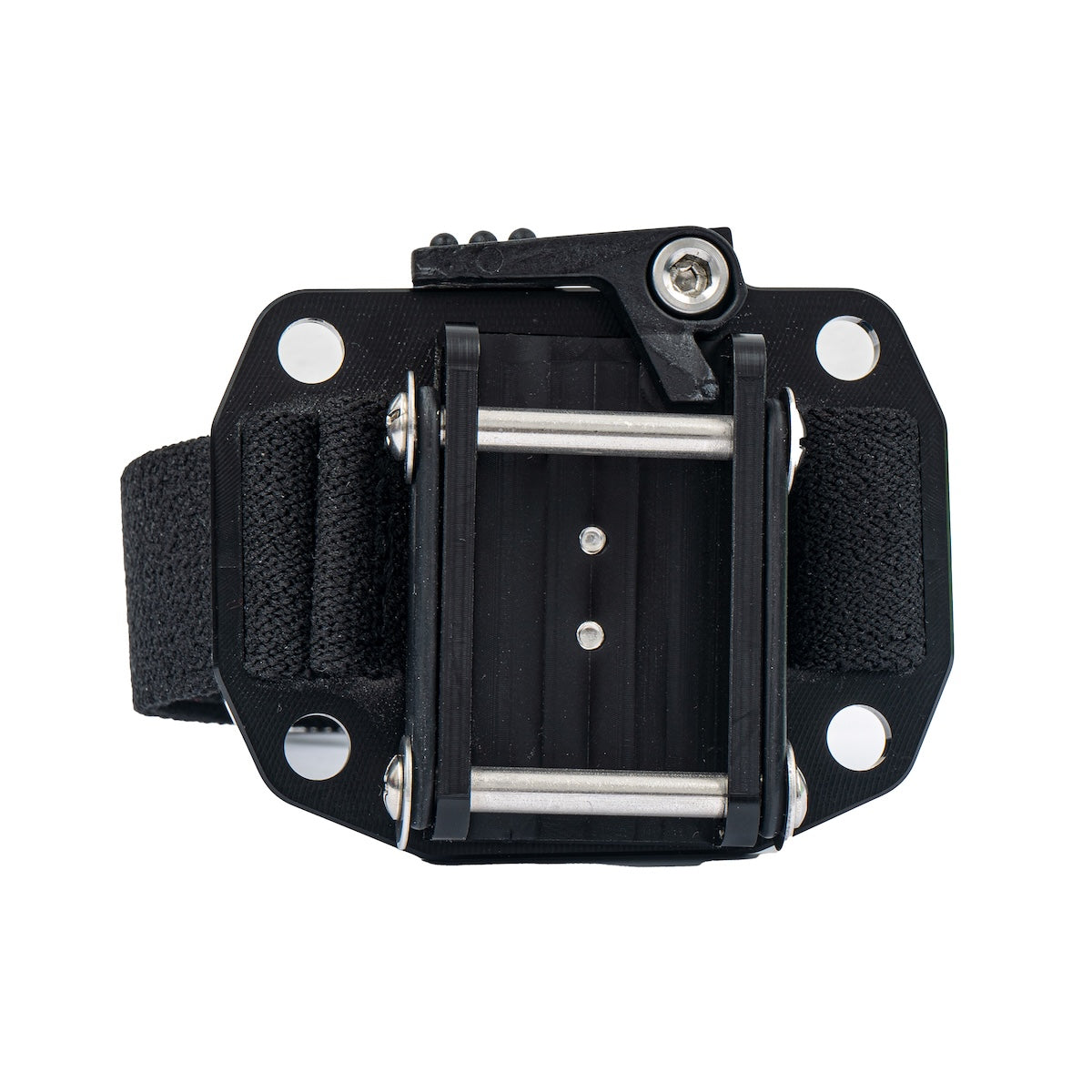

| Mount | Soft elastic handmount plate with QRM mounting system (included) |
MODES
| Power Mode | Turbo | High | Medium | Low |
| Lumen Output | 2400 | 1200 | 490 | 110 |
| Burn Time (Min) | 90 | 240 | 600 | 48 hours |
BATTERY STATUS
| Color | Green | Green Flash | Red/Green Flash | Red Flash | Blue Flash |
| Battery Level | 100% | 66-99% | 33-66% | 0-33% | Error |
Note: Stated burn times indicate the length of time that the light will maintain continuous stable output at the specified mode. After this time, regardless of mode, the light will flash 3 times to indicate low battery and then automatically step down to low power mode. The light will continue to burn on low power for a minimum of 5 additional hours to allow safe completion of the dive and ensure that you are never left in the dark.
